The Size Debate: 140mm vs 120mm Case Fans Performance

When assembling a new desktop PC or upgrading an existing one, making proper cooling considerations is crucial to ensuring optimal thermals, low noise, and excellent system longevity. The humble case cooling fan plays an absolutely vital role in effectively regulating internal ambient temperatures and component operating stability.

Unlike visibly impressive liquid CPU coolers and GPU heatsinks covered in flashy RGB lights, the unassuming black fan mounted to the plain metal case side-panel can sometimes get overlooked in a build. However, whether simple or tricked out, quality case fans are the backbone driving sufficient airflow needed to control temperatures on critical hardware like the CPU, GPU, RAM, chipset, M.2 SSDs, and PSU.

Choosing the right size case fans can make a dramatic difference in real-world performance, noise levels, build budget, and even compatibility inside your chosen chassis. When it comes down to the two most popular models available, 120mm vs 140mm PC fans represent a common crossroads decision during parts selection.

What key traits set these two fan sizes apart? In which use-case scenarios does each excel or falter? Does bigger truly mean better? Or do smaller fans pack mighty cooling capacity in more compact dimensions?

This comprehensive guide will address the core questions surrounding 120mm vs 140mm case fans to inform your next equipment purchase.

After detailing their differences across critical factors like cooling performance, noise levels, compatibility, intended PC build use, types of components installed, space constraints, personal preferences, and pricing considerations – we’ll provide specific recommendations on choosing the right size for your needs. Time to settle that glowing RGB fan purchase!

140mm vs 120mm fans: Quick Answer

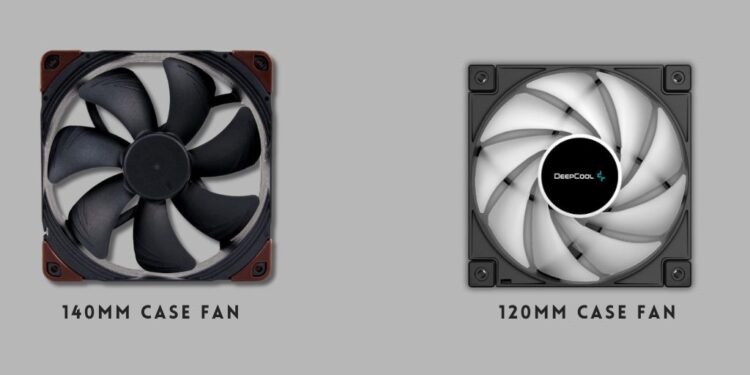

140mm case fans are physically larger in size – 140mm x 140mm x 25mm versus 120mm x 120mm x 25mm to be precise. This expanded surface area allows them to push more air volume and achieve better cooling capacity at lower, quieter speeds. However, bigger 140mm fans also have limitations in small form factor SFF case fitment, component mounting support, and carry a price premium over smaller 120mm models which still deliver sufficient cooling for most standard setups.

Key Differences

Dimensions

The defining physical difference between these competing cooling fan sizes are the external housing dimensions, dictating total sweeping area for airflow:

• 120mm fans: The 120mm measurement indicates a perfectly square fan with 120mm x 120mm dimensions. Most consumer models are 25mm thick, giving total dimensions of 120mm x 120mm x 25mm. This allows for 4 x ~100mm fan blades to be mounted within the enclosure.

• 140mm fans: Sizing up, 140mm fans come in at 140mm x 140mm dimensions, still with standard thickness around 25mm for 140mm x 140mm x 25mm total. This larger housing fits up to 4 x ~130mm blades, a noticeable size increase over 120mm rotors.

While 20mm larger blades may not seem drastically bigger at first glance, combined with 20mm extra sweep radius, 140mm fans can have over 30% more total airflow surface area compared to smaller 120mm models!

Now let’s explore the cooling performance implications of those dimensional differences in our next section.

Cooling Performance

It makes intuitive sense that a larger fan moving air across a greater surface area will have increased cooling capacity. But the specifics in thermal engineering metrics bear this out:

• Airflow Amount: 140mm fans see significant gains in terms of raw airflow volume moved measured in CFM (cubic feet per minute). For example, benchmark Corsair ML series 120mm vs 140mm models measure 75 CFM versus 97 CFM respectively. That’s nearly 30% more cool intake or exhaust air pushed by the bigger 140mm fan!
• Blade Size: At a fixed RPM speed, longer ~130mm 140mm fan rotor blades mechanically displace more air with each rotation compared to shorter ~100mm 120mm fan blades.
• Speed Scaling: When optimized 140mm fans spin up to higher speeds, their long blades generate exponential air displacement, greatly increasing net airflow. Whereas smaller 120mm fans see marginally declining returns in airflow gains at peak RPMs.

But it’s not all advantage to the 140’s:

• Density and Spread: While 140mm fans move more total air, 120mm fans can concentrate airflow more tightly on specific components like GPU/CPU heatsinks. This focused density better mitigates hotspots.
• ssyComponent Fit: The advent of small and narrow next-gen hardware like compact GPUs and ITX motherboards favors the flexible size compatibility of 120mm fans in tight spaces.

So while 140mm fans objectively have airflow advantages thanks to bigger surface area and blades, don’t discount the mighty cooling effectiveness of well-placed 120mm fans on modern components!

Noise Levels

• Blade Velocity: 140mm blades have higher trajectory for the same RPM speed as 120mm rotors. This increased velocity amplifies airflow. End result is moving the same amount of air while the fan spins slower for less noise.
• Tip Speed: Longer 140mm blades also reduce the speed each blade tip needs to travel to sweep the required area. Lower tip velocity means less turbulence and vibrations, reducing noise levels.
• Effort and Velocity: More surface area for the 140mm fan means achieving target airflow requires less effort and speed from the motor. So 140mm units produce less unwanted frequency noise whine.

Here are noise rating examples at peak speed:

• Corsair ML140 120mm Fan: 36 dBA at 1500 RPM
• Corsair ML120 120mm Fan: 37 dBA at 2000 RPM

Despite having to spin 33% faster, the smaller 120mm fan produces slightly more noise trying to keep up! This scenario applies across brands and models – bigger 140mm fans running slower objectively operate quieter.

Compatibility

The key shortcoming of bigger 140mm cooling fans emerges when exploring hardware and chassis compatibility:

• Small Form Factors: HTPC, SFF, mini-ITX, and micro-ATX compact case sizes often cannot accommodate 140mm unit installation or feature very limited mounting support. 140mm fans likely obstruct adjacent components or impede side panels from closing shut. 120mm models still work given tighter clearances.
• CPU Coolers: Both air and liquid CPU heatsinks overwhelmingly utilize 120mm mounting holes and screw patterns. Even larger tower coolers may only provision dual 120mm fan attachments.
• Radiator Support: Similarly, majority of cooler radiators and brackets supplied for pumping in cool external air are designed for 120mm fan pairing.
• GPU Brackets: Aftermarket GPU makers expect most consumers will configure intake/exhaust flow with 120mm chassis fans. So GPU pump fan brackets tend to follow 120mm attachment standards as well for alignment.
• Case Fan Walls: Finally, even larger ATX mid-towers can be restrictive in the number, positioning, or screw sizing of native 140mm fan mounts built into the removable case walls and panels. 120mm holes are far more prevalent.

This presents major installation challenges or outright exclusion of 140mm fan usage in various scenarios – an important restriction compared to the universal 120mm size support.

Cost

By market mechanisms of supply, demand, and manufacturing & shipping considerations given their larger physical size, 140mm cooling fans come at a inherent cost premium over 120mm units.

Here are popular model price comparisons:

• Noctua 120mm Fan NF-P12 = $22
• Noctua 140mm Fan NF-P14 = $35

Over 15% extra for the 140mm fan! This trend holds steady across brands like Corsair, Arctic, BeQuiet, and CoolerMaster as well. Similar spec 140mm models run 15-25% more than equally well-performing 120mm fans.

The price gap used to be even higher in the past when 140mm fan adoption was still ramping up. As more manufacturers tool production lines towards 140mm SKUs, costs are slowly improving.

But the smaller 120mm form factor still benefits from massive global scale and years of process maturity, keeping prices economical. This makes 120mm fans a prudent budget choice where cooling needs are less extreme.

Factors To Consider for Case Fan

Ambient dimensions and specification measurements only reveal part of the 120mm vs 140mm fan decision story. Real-world cooling performance depends greatly on PC build scenarios. Let’s explore the key considerations:

Intended PC Build Use Case

A fan’s job is transferring heat – so matching size appropriately to heat generation expected from your PC’s intended usage is critical:

• Gaming Rigs: High-FPS titles tax GPUs/CPUs considerably. Either 120mm or 140mm chassis fans work well here if positioned strategically as front intakes and rear exhausts. Go with 140mm models for lower noise given fans spin up to max speed for long periods.
• Overclocked Systems: CPU/memory overclocking or GPU BIOS flashing pushes temperatures to the brink. Core components now output dangerous levels of heat at 150W+ continuously. This requires using all 140mm fans viable for their max airflow cooling capacity.
• Office PCs: Simple web browsing and app usage has low computational intensity. Either 120mm or 140mm fans provide ample cooling potential without needing to spin fast. Prioritize silent operation here with 120mm or 140mm chassis intake fans combined with low speed 140mm exhaust fan.
• Compact SFF Builds: When cramming top specs into tiny Mini-ITX cases with full power components, small 120mm fans become mandatory. Carefully balance thermals since limits on fan speed speeds and number of mounts cap cooling performance.

Types of PC Components

Obviously a packed server rack sits differently on the thermal spectrum compared to an HTPC! Match fan size appropriately against heat emitting components:

• High TDP GPUs: 250W flagship NVIDIA RTX 4090 and AMD Radeon 7950X GPUs have incredible rendering power. But pack huge transistors and GDDR6X VRAM into tiny dense chips, outputting extreme levels of concentrated heat. Chassis fans must work overtime removing hot air. Specify max airflow 140mm models directing gusts laterally across entire length of GPU boards.

• Unlocked CPUs: Core i9 and Ryzen 9 processors meant for overclocking already reach 100°C power limits at stock speeds! Once manually throttled up further, substantial VRM and chipset supplemental voltage regulation becomes necessary. Carefully situate 140mm fans blowing streams of cool external intake air onto critical overclocking motherboard sections to prevent shutdowns.

• Multi-GPU Setups: Crypto mining rigs with rows of graphics cards endure relentless workloads and burn-in stress as fans run full tilt for months straight. Maintaining viability over long-term requires creating dedicated compartments with side-mounted 140mm intake fans blown laterally across each GPU, while rear 140mm exhaust fans eject backside heat out.

In these scenarios, the full brute airflow force and noise reduction capabilities of big 140mm fans vastly outweigh 120mm models. Worth their premium cost where peak cooling capacity becomes critical!

Available Case Space

Before deciding 120mm or 140mm, ensure your chassis actually supports desired fan models appropriately:

• Full Tower Cases: These spacious builds offer far more flexibility fitting 140mm fans, often with more pre-drilled bracket holes exclusively for this size. Measure for 140mm compatibility upfront.
• Micro-ATX Cases: Micro-ATX boards mean medium, not gigantic cases. But still with adequate clearance around common GPU, CPU, and drive locations for side 140mm fan installation.
• Mini-ITX Setups: Tiny form factors like mini-ITX mean severely cramped case internals. Focus efforts solely on small 120mm fans for motherboard/GPU coverage. Else component removal becomes necessary to fit any 140mm models!

Hand Measure clearance gaps around existing hardware or audition fan screw positioning first. 140mm units need sufficient margins so airflow isn’t disrupted near obstacles.

Personal Noise Preference

Do fan operating volumes truly bother you? Or can you tolerate mechanical whirring and turbulence associated with rapid spinning? Assess yourself:

• Low Noise Priority: Are you sensitive to fan vibration and turbulence drone? Do sounds interfere with environmental concentration, voice calls, or media enjoyment? Maximize use of 140mm case fans mounted as intakes/exhausts for quieter computing.
• Performance Priority: Fan noise simply an acceptable byproduct in the quest for ultimate thermal headroom? Feel free using 120mm fans exclusively by picking air movers with max airflow CFM specifications, rather than lowest noise. Acoustics matter less than temperatures!

Available Budget

Finally, wallet constraints inevitably weigh into 120mm vs 140mm fan selection. Assessment comes down to:

• Cost-Optimized Build: Building on a value budget? Spec 140mm fans only selectively where their cooling capacity adds most value. Populate remaining less thermally-critical fan mounts with 120mm models to maximize savings. A mix brings cost-average down versus 100% 140mm.
• Enthusiast Dreams: For that dream 3K gaming & OC rig, splurge on best-in-class air movers! Cost becomes no barrier to combat heat from your shiny 12700K and 4090 future-proof combo. Fill every chassis fan bracket possible with premium 140mm models for noise-normalized cooling.

Finding the right balance depends on heat expectations from hardware invested. Mix-and-match 120mm plus 140mm fans lets builders fine-tune airflow delivery and acoustics zone-by-zone across rigs to balance performance and budget.

Case Fan Recommendations

With key fan differences detailed and factors covered, here are some specific recommendations:

• Micro-ATX & Mid-Tower Gaming Cases: Opportunity emerges for a best-of-both strategy. Use max size compatibility to install front/bottom 140mm high airflow intake fans blowing massive volumes onto GPU/CPU. Then install 120mm exhaust models up top and rear for targeted outlet ventilation.
• Ultimate GPU Cooling Focus: Running hot 250W+ flagship graphics cards? Further supplement native case fans by sandwiching open air GPUs between bottom 140mm case intake directly below, and mounting additional 140mm fans externally atop expelling heat vertically. Complements axial heatstack fan airflow to significantly improve net chip and memory temp reductions.
• Silent HTPCs: Home theater PCs belong in quiet living spaces. Lean on 120mm or 140mm chassis intake fans paired with 140mm exhaust fans to maintain airflow at lowest possible speeds. For home servers requiring sustained max CPU clock, liquid cooling solutions better dampen noise while harnessing comprehensive fan control firmware.
• Custom Server Farms: Housing racks of enterprise equipment? Consider supplemental ceiling exhaust fans paired to temperature-triggered variable speed control for automated heat evacuation at scale. Mount enormous 300mm to 500mm axial fans turning slowly for substantial CFM moved per unit at negligible noise cost.

Conclusion

We’ve now come full circle in comprehensively exploring distinctions between 120mm vs 140mm cooling fans powering desktop PC builds:

• In terms of raw cooling capability, 140mm case fans win handily as bigger blade surface area leads to higher airflow volumes at reduced noise. But limitations exist on small form factor case compatibility and budget pricing versus 120mm models.
• 120mm case fans meanwhile represent versatile legacy compatibility in an economical package. They cool effectively given correct fan speed & placement optimization – though require more noise to move the same heat.

Ultimately the “best” fan size comes down to your build use scenario. So consider intended PC application, peak component heat levels, chassis space available, noise tolerances, and budget. This guides balancing 120mm plus 140mm models correctly.

These little workhorses keep expensive, delicate silicon and modules happily operating within safe temperature margins. So whether you decide on big 140’s or small 120’s as primary air movers, stay cool and game on!

Frequently Asked Questions

Are bigger fans better?

Generally yes, bigger fans like 140mm move more air and run quieter than smaller fans like 120mm. Their larger surface area and blades displace increased airflow at lower RPM speeds.

Does fan size matter?

Absolutely. Fan size significantly impacts cooling performance, noise levels, compatibility, and budget. Key factors like intended PC use, case size constraints, components installed, and noise tolerance determine ideal fan size selection.

What is a good fan size?

120mm or 140mm fans represent the best sizes for most PC builds. 120mm works universally but 140mm excels on cooling capacity and quietness where compatible. Unique cases may support very large 200mm fans or 80mm models.

Which fans are most powerful?

The highest CFM airflow and static pressure fans are generally 140mm or larger models, which leverage greater blade surface area and speeds for peak air displacement. But well-designed 120mm fans still move ample air to cool systems effectively.

How many fans is best for a PC?

Ideally 3 or more fans – at minimum 2x front intake and 1x rear exhaust to properly pressurize and ventilate air through system. More fans proportionately improves cooling, but with potential noise tradeoffs.

Can you put a 140mm fan on a 120mm radiator?

No. Radiators, CPU fan brackets, and GPU pump assemblies are designed specifically for either 120mm or 140mm fan standardized screw mounting. Fan sizes must directly correspond to component holder sizes.

Which fans should I get if I want a quiet workspace?

For quiet computing focus on 140mm or large 120mm fans optimized for low noise operation via features like rifle bearings, sound dampening frames, and slower target RPM speeds. Prioritize placing as front intakes over quicker exhaust placement.
